PV7000 TWIN
On Grid Hybrid
Infini
Overview

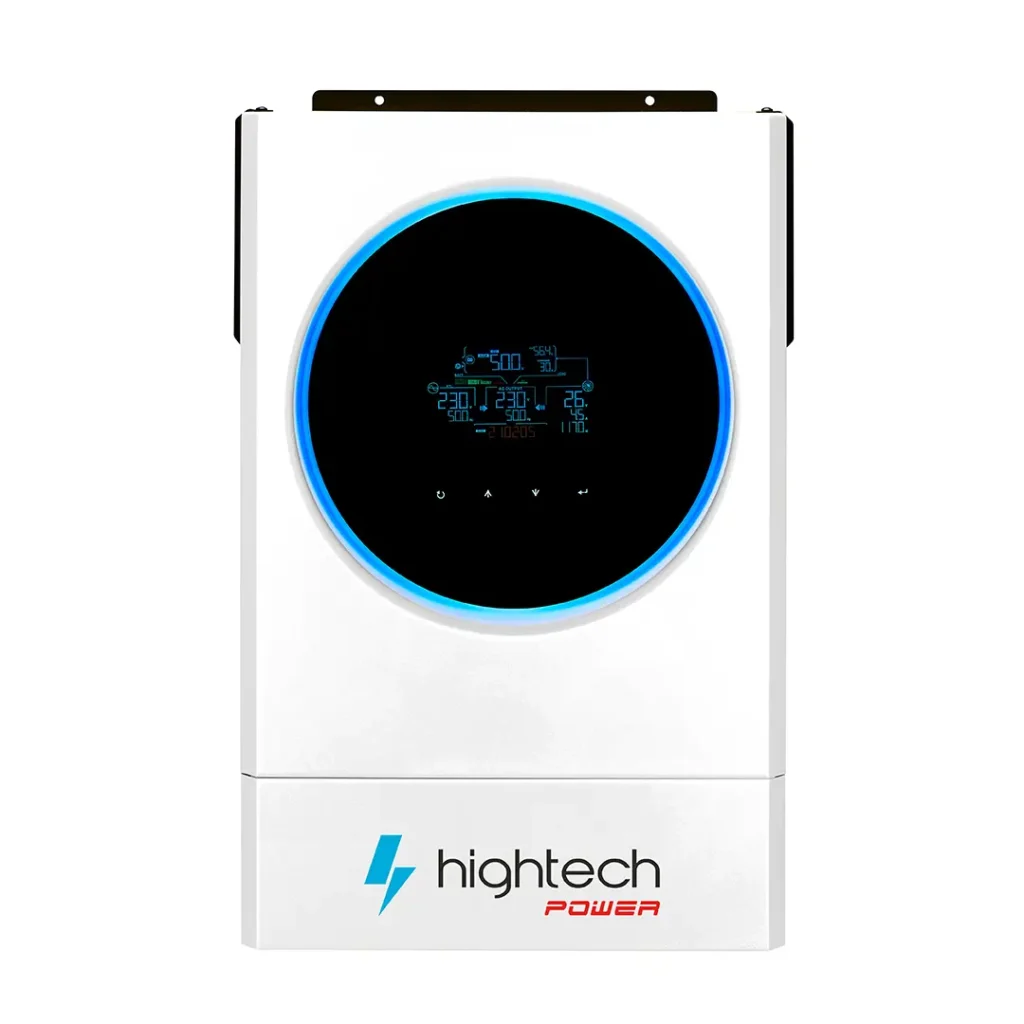

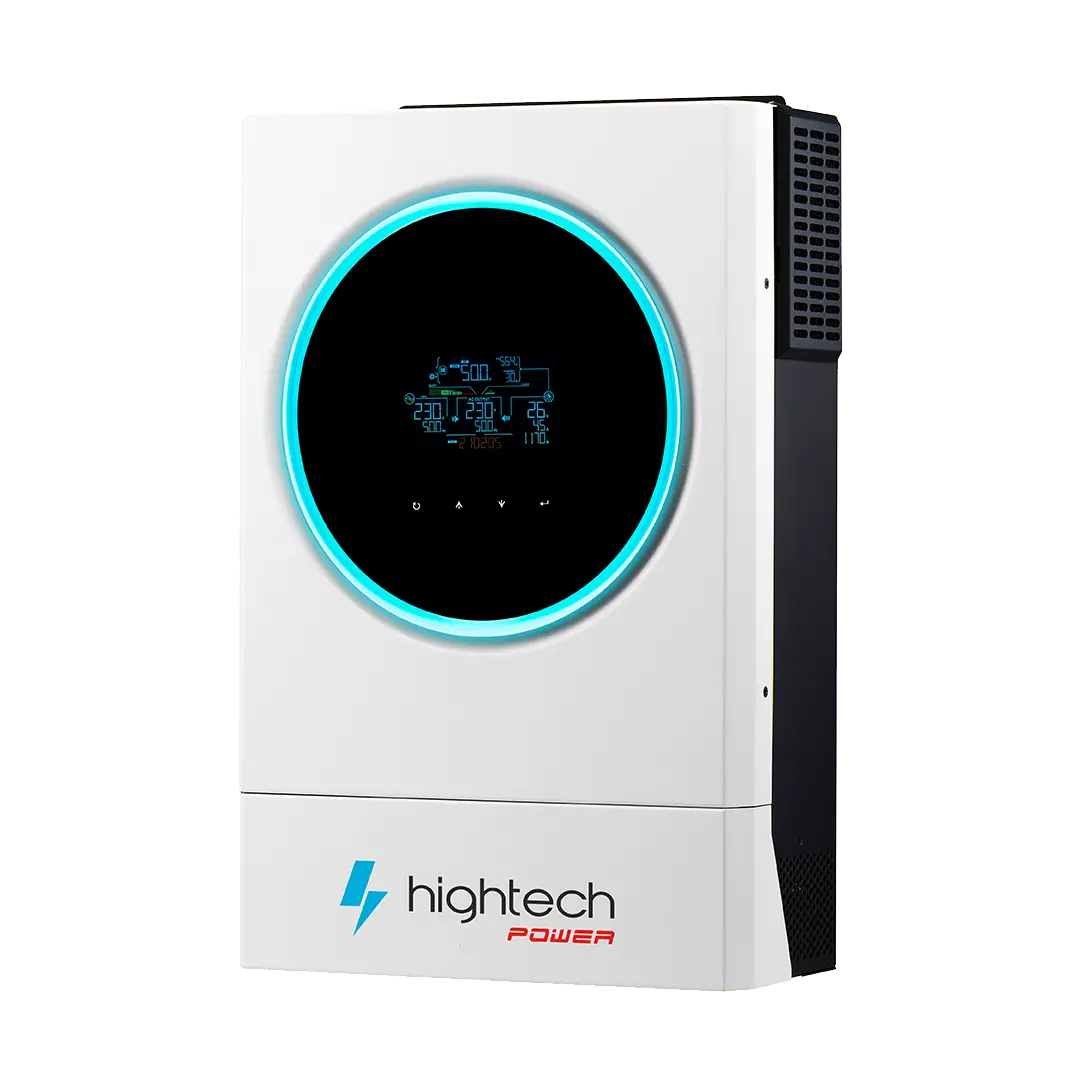

The PV 7000 is a high-performance solar inverter designed to deliver uninterrupted, efficient, and reliable power for homes and businesses. Engineered with advanced solar technology, it ensures maximum energy conversion, reducing electricity costs while providing a sustainable energy solution. With smart monitoring features and durable design, the PV 7000 is built to keep you powered in every situation.
Main Features
• Maximum PV input current 27A
• Dual outputs for smart load management
• Touchable button with 4.3″ colored LCD
• Programmable supply priority for PV
• User-adjustable charging current and voltage
• Built-in Wi-Fi for mobile monitoring (App is available)
• Reserved communication port for BMS
• Parallel operation up to 9 units
Specifications
| MODEL: PV7000 TWIN INFINI 6kW | |
| Phase | 1-phase in / 1-phase out |
| Maximum PV Input Power | 7000W |
| Rated Outout Power | 6000W |
| Maximum Charging Power | 6000W |
| GRID-TIE OPERATION | |
| PV INPUT (DC) | |
| Nominal DC Voltage/ Maximum DC Voltage | 360 VDC / 500 VDC |
| Start-up Voltage / Initial Feeding Voltage | 120 VDC / 150 VDC |
| MPP Voltage Range | 120 VDC ~ 430 VDC |
| Number of MPP Trackers/ Maximum Input Current | 1 / 27A |
| GRID OUTPUT (AC) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Voltage Range | 184 - 264.5 VAC or 195.5 - 253 VAC (Selectable) |
| Nominal Output Current | 26 A |
| Power Factor | > 0.99 |
| EFFICIENCY | |
| Maximum Conversion Efficiency (DC/ AC) | 96% |
| OFF-GRID OPERATIONS | |
| AC INPUT | |
| AC Start-up Voltage/ Auto Restart Voltage | 120 - 140 VAC / 180 VAC |
| Acceptable Input Voltage Range | 90 - 280 VAC or 170 - 280 VAC |
| Maximum AC Input Current | 40 A |
| PV INPUT (DC) | |
| Maximum DC Voltage | 500 VDC |
| MPP Voltage Range | 120 VDC - 430 VDC |
| Number of MPP Trackers/ Maximum Input Current | 1 / 27 A |
| BATTERY MODE OUTPUT (AC) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Waveform | Pure sinewave |
| Efficiency (DC to AC) | 93% |
| HYBRID OPERATION | |
| PV INPUT (DC) |
|
| Nominal DC Voltage/ Maximum DC Voltage | 360 VDC / 500 VDC |
| Start-up Voltage / Initial Feeding Voltage | 120 VDC / 150 VDC |
| MPP Voltage Range | 120 VDC ~ 430 VDC |
| Number of MPP Trackers/ Maximum Input Current | 1 / 27A |
| GRID OUTPUT (AC) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Voltage Range | 184 -264.5 VAC or 195.5 -253 VAC (Selectable) |
| Nominal Output Current | 26 A |
| AC INPUT | |
| AC Start-up Voltage/ Auto Restart Voltage | 120 - 140 VAC / 180 VAC |
| Acceptable Input Voltage Range | 90 -280 VAC or 170 -280 VAC |
| Maximum AC Input Current | 40 A |
| BATTERY MODE OUTPUT (AC) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Efficiency (DC to AC) | 93% |
| BATTERY & CHARGER | |
| Nominal DC Voltage | 48 VDC |
| Maximum Solar Charging Current | 120A |
| Maximum AC Charging Current | 120A |
| Maximum Charging Current | 120A |
| GENERAL | |
| PHYSICAL | |
| Dimension, D x W x H (mm) | 140 X 295 X 468 |
| Net Weight {kgs) | 12 |
| INTERFACE | |
| Parallel Function | Yes, 9 units |
| Communication Port | USB/RS232/RS485/Wifi/Dry-contact |
| ENVIRONMENT | |
| Humidity | 0 -90% RH (Non-condensing) |
| Operating Temperature | -10 to 50 °C |
