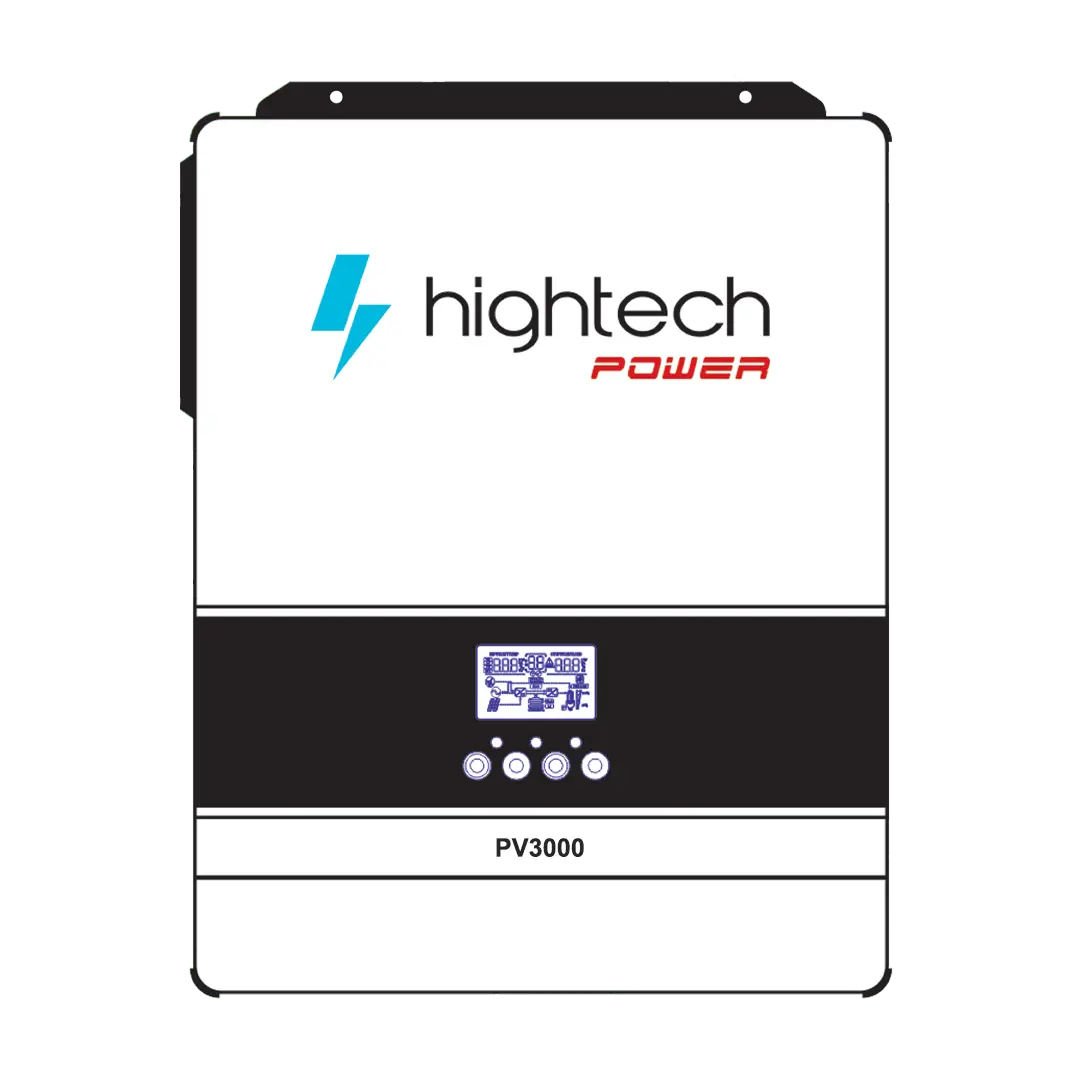

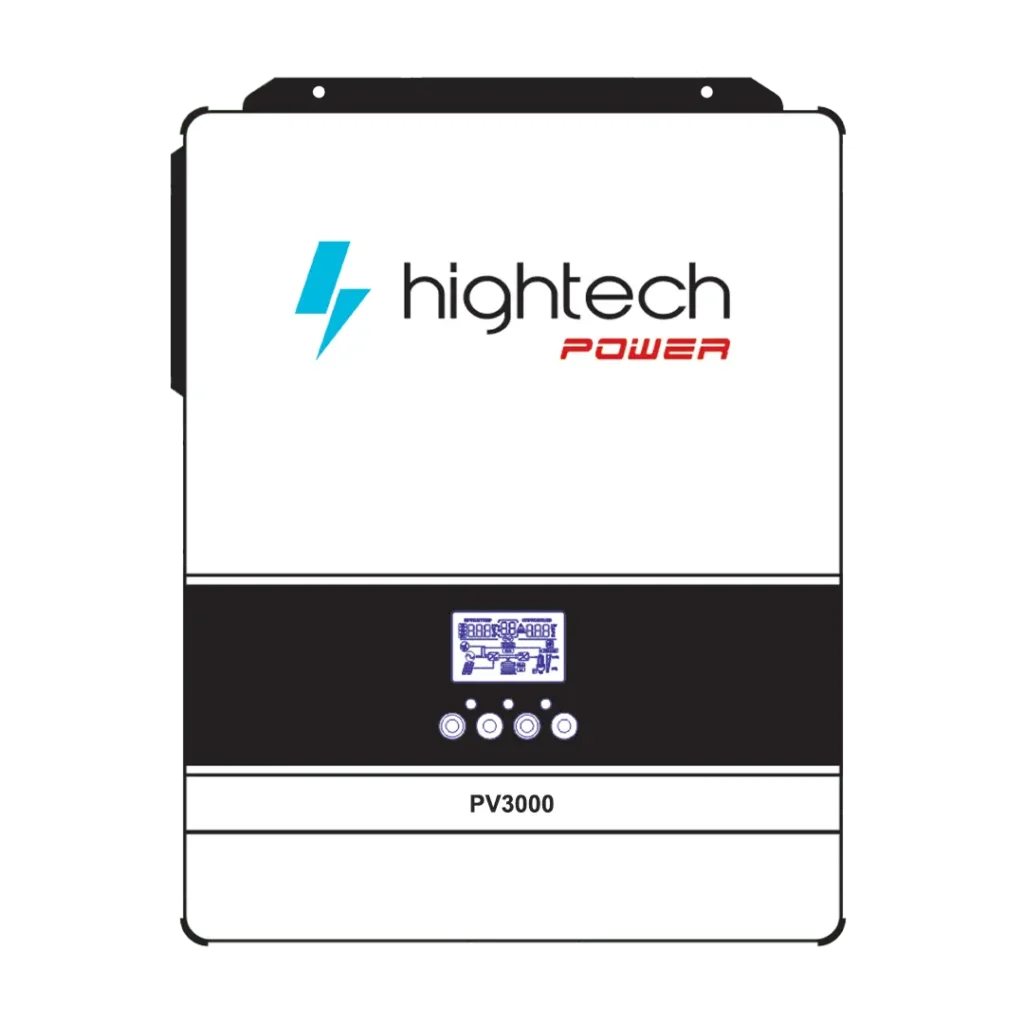

PV3000
Off-Grid Inverter
Overview
The Hightech PV 3000 is a compact yet powerful solar inverter, designed to deliver uninterrupted and efficient energy for homes and small businesses. Equipped with advanced MPPT technology, pure sine wave output, and seamless solar, battery, and grid integration, these inverters ensure maximum energy utilization and long-lasting performance. This model provides a stable, cost-effective, and sustainable power solution.
Main Features
• MPPT solar charge controller inside
• Wide PV input range 13-400Vdc
• Reliable quality, economic design
• Configurable battery & AC/Solar priority via LCD setting
• Smart battery protection
Specifications
| MODEL SUNON E SERIES | E-SUN 3KVA |
| RATED POWER | 3000VA/2700W |
| INPUT | |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280VAC (UPS), 90-280VAC (Appliances) |
| Frequency Range | 50 Hz / 60 Hz (Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power | 6000VA |
| Power Factor | 0.9 |
| Efficiency (Peak) | >90% |
| Transfer Time | 10ms (UPS), 20ms (Appliances) |
| Waveform | Pure sine wave |
| No Load Current | 1.0A |
| BATTERY | |
| Battery Voltage | 24 VDC |
| Low Battery Alarming Voltage | 22.0 VDC |
| Low Battery Cut Off Protection Voltage | 21 VDC |
| Low Battery Recovery Voltage | 23.0 VDC |
| Floating Charge Voltage | 27 VDC |
| Overcharge Protection | 32 VDC |
| MPPT SOLAR CHARGER & AC CHARGER | |
| Maximum PV Array Power | 3200W |
| MPPT Range Operation Vol | 30-430 VDC |
| Best PV range | 120-430V |
| Maximum PV Array Open Circuit Vol. | 450VDC |
| Number of MPPT trackers / Max output current | 80A |
| Maxmum AC Charge Current | 60A |
| Maxmum Efficiency | 98% |
| BEST PANEL CONFIGUTATION |
|
| Maximum PV Array Power | 3000W |
| PHYSICAL | |
| Products Dimension, D*W*H(mm) | 350mm*270mm*98mm |
| Packing size, D*W*H(mm) | 413mm*350mm*l 73mm |
| Net Weight (kgs) | 5KG |
| G.W. kg | 5.8KG |
| Communication Interface | RS232/GPRS/ Optional WIFI |
| OPERATING ENVIRONMENT |
|
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
